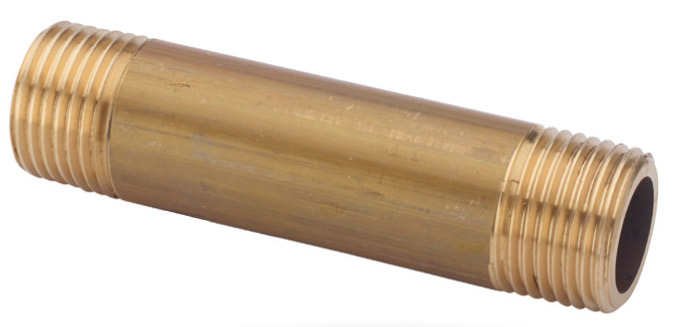

MM extensions: Hydraulic application (pneumatic on request). Taper threads ISO228/1 (ISO 7 - DIN 2999 - BS 21 Metric - ISO R/262 on request). Max. temp. 130°.
|

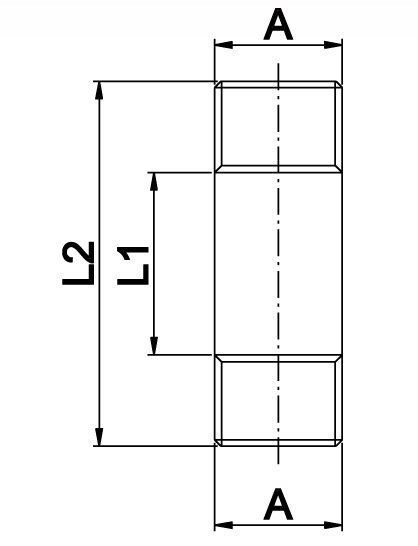

COD. |
A |
L1 |
L2 |
P |
CH |
|
WF3730 |
1/2" |
30 |
60 |
- |
- |
|
WF3731 |
1/2" |
50 |
80 |
- |
- |
|
WF3732 |
1/2" |
70 |
100 |
- |
- |
|
WF3733 |
1/2" |
120 |
150 |
- |
- |
|
WF3734 |
1/2" |
170 |
200 |
- |
- |
|
WF3735 |
1/2" |
220 |
250 |
- |
- |
|
WF3736 |
1/2" |
270 |
300 |
- |
- |
|
WF3740 |
3/4" |
- |
60 |
- |
- |
|
WF3741 |
3/4" |
- |
80 |
- |
- |
|
WF3742 |
3/4" |
- |
100 |
- |
- |
|
WF3743 |
3/4" |
- |
150 |
- |
- |
|
WF3744 |
3/4" |
- |
200 |
- |
- |
|
WF3745 |
3/4" |
- |
250 |
- |
- |
|
WF3746 |
3/4" |
- |
300 |
- |
- |
|
WF3750 |
1" |
- |
60 |
- |
- |
|
WF3751 |
1" |
- |
80 |
- |
- |
|
WF3752 |
1" |
- |
100 |
- |
- |
|
WF3753 |
1" |
- |
150 |
- |
- |
|
WF3754 |
1" |
- |
200 |
- |
- |
|
WF3755 |
1" |
- |
250 |
- |
- |
|
WF3756 |
1" |
- |
300 |
- |
- |
